Steel & Aluminium Tubular Fencing

Product Outline

SFG supply and install a wide range of steel and aluminium tubular fencing.

Standard Heights: 1200, 1500, 1800 and 2100

The standard assembly consists of 2400mm long panels with uprights welded at 90mm spacing into horizontal rails and secured to posts with proprietary security bracket and anti-tamper fastenings.

Top and bottom horizontal rails are typically 45 x 35 RHS sections. Larger height panels can incorporate a middle rail for additional stiffening.

Vertical round section tubes come in two sizes:

  • 16mm round
  • 19mm round

For heavy duty applications a 25x25mm square tubular steel upright and 40x40x1.6mm rail is recommended.

Tube spacing to meet pool safety compliance is 112mm centres. Fence posts are typically 65x65mm steel or aluminium hollow tube. For a lower impact environment a 50 x50 post can be incorporated.

There are a variety of fence tops available in this range:

  • Flattop

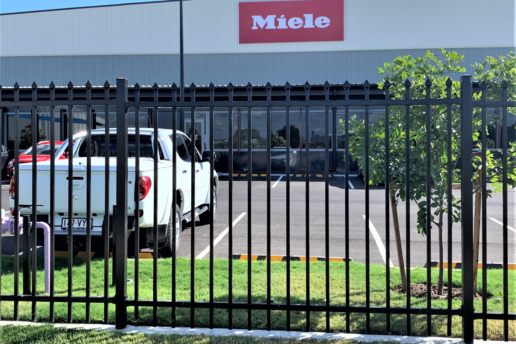

  • Picket

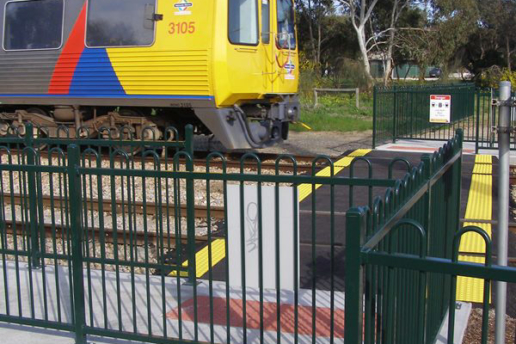

  • Loop top


Tubular fencing has an unlimited range of uses and with an option of steel or aluminium providing great flexibility.

Tubular fencing is typically used for:

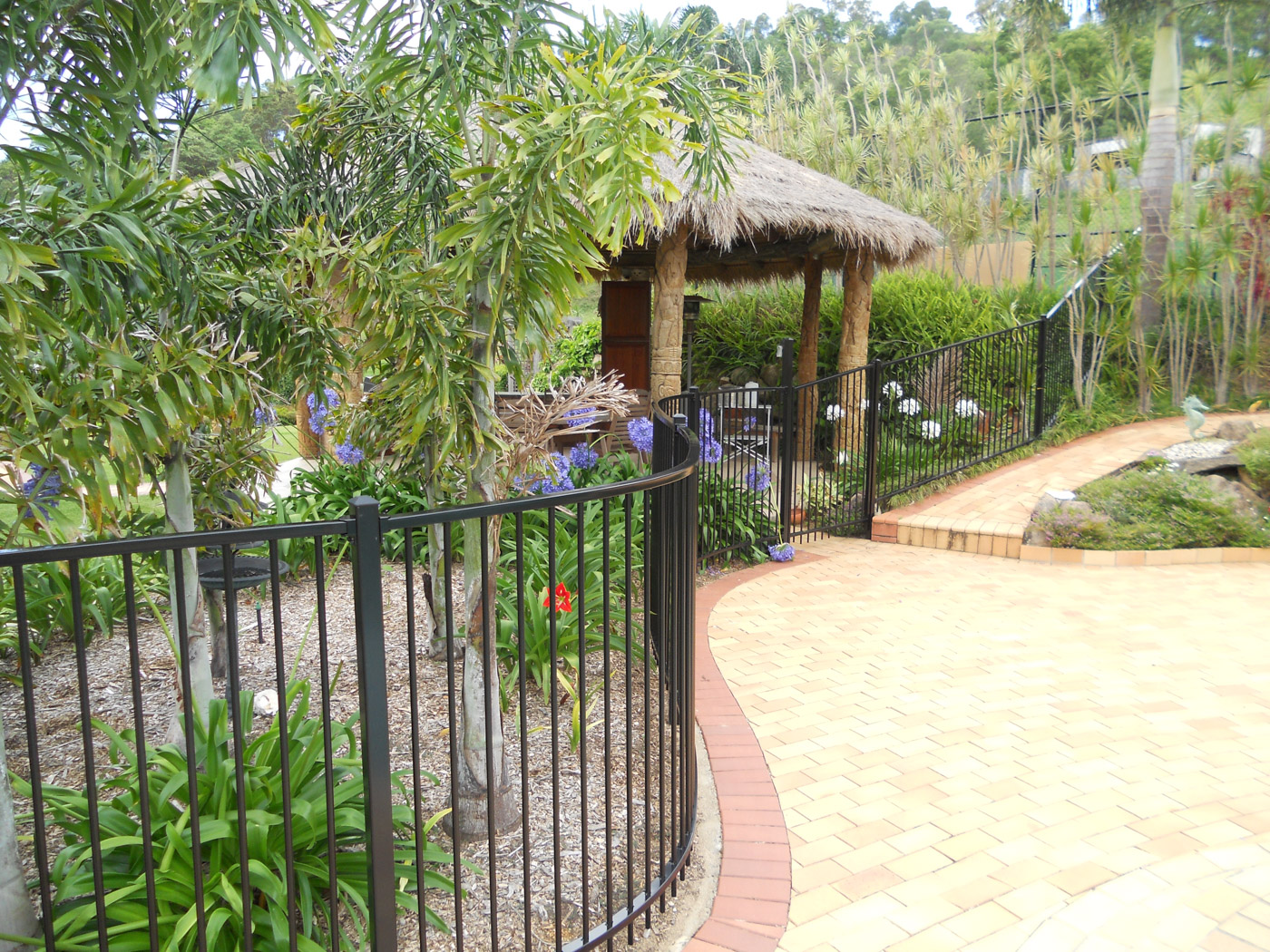

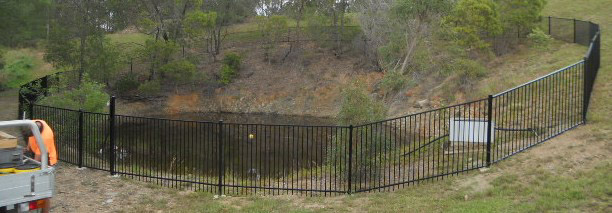

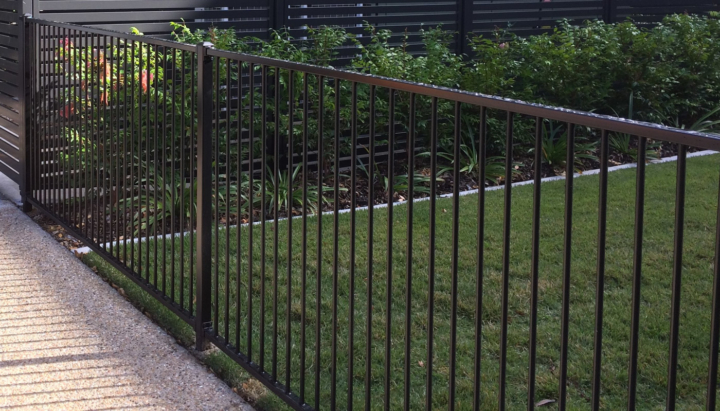

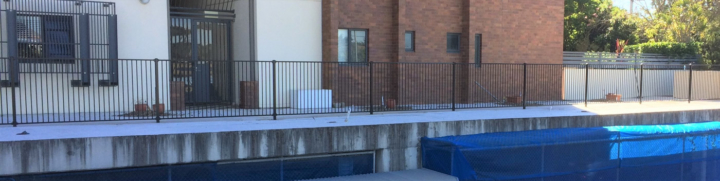

  • Pool fencing

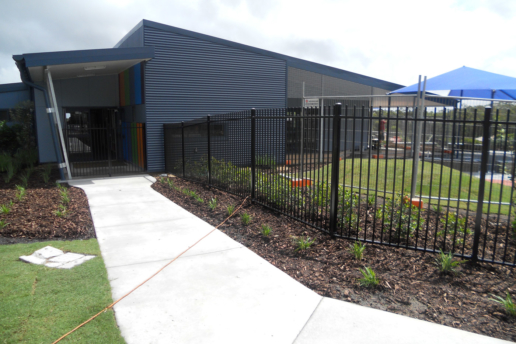

  • School fencing
  • Bio retention swale fencing
  • Boundary fencing
  • Crowd or pedestrian guidance fencing
